KSY24622-1A

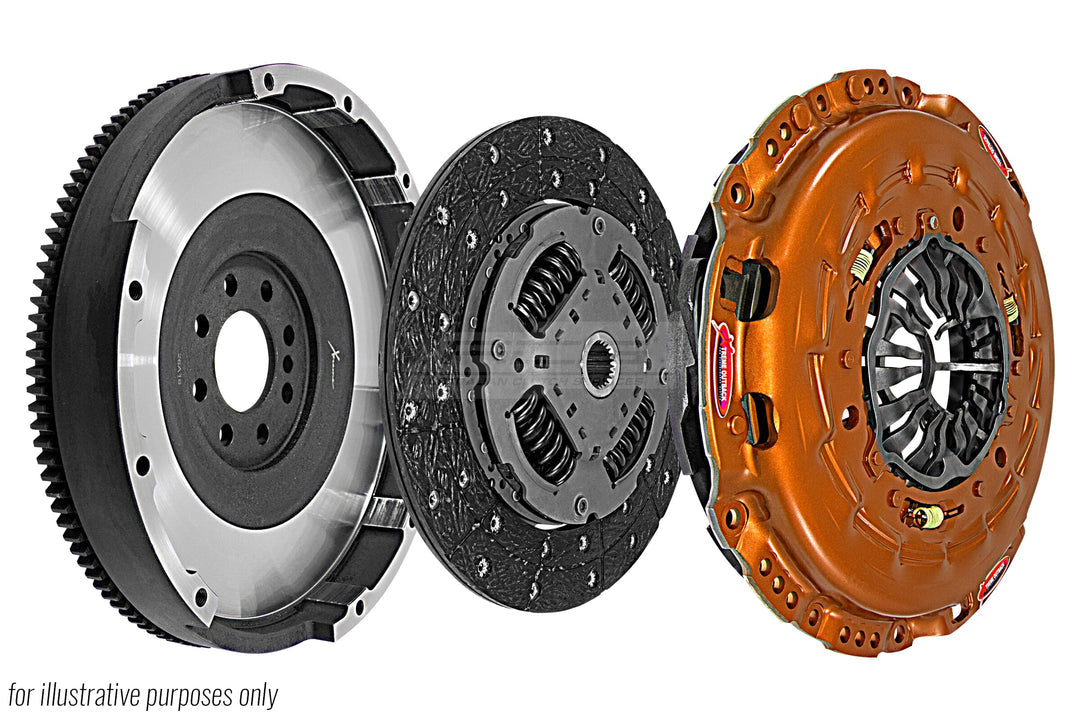

The stage 1 upgrade from Xtreme Outback is designed to provide a significant increase in torque capacity whilst retaining driveability for daily driven vehicles. These kits are ideal for vehicles that have been tuned, tow heavy loads regularly, are fitted with larger tyres or heavy accessories and that are used in extreme conditions. The 600 series kit includes heavy duty pressure plate with increased clamping force, sprung or rigid organic friction disc (depending on the application), flywheel and concentric slave cylinder. The kit also includes an alignment tool & spigot bearing/bush where required. Xtreme Outback also offer a range of different kit options including extra heavy duty kits for specific applications requiring an even further increase in torque capacity.

Upgrade Stage:1

Disc Type: Sprung

Friction Material: Organic

Clutch Disc Diameter (mm): 240

Clutch Disc Spline Count: 25

Clutch Disc Spline Diameter (mm): 28.15

Flywheel Step (mm): Flat

Torque Capacity @ Flywheel (Nm): Not Available

Recommended Use: Street / Offroad / Towing
